固定式讀取設備
Fixed Equipment



TLR-4000 天線讀取器

TLR-4000（包括TLR-4000及TLR-4000HiLoMA）系列是AWID新款高速讀取設備，專為車輛識別（AVI, Automatic Vehicle Identification）、停車場進出管理、門禁管理（Access control）系統，採用UHF超高頻技術所開發的遠距讀取設備。為提高安全性、保密性，AWID亦針對此一系列產品提供了專屬車用的UHF電子標籤與卡片，有不同類別可供選擇。TLR-4000已內建一組高感度天線，TLR-4000HiLoMA則可再外加天線，提供更大的應用擴展性。作為門禁應用的LR系列，介面上支援門禁標準系統的Wiegand及RS-232。


產品特點：
★ 可迅速辨識時速100 公里直線行駛車輛上的電子標籤
★ 內建天線一體機設計
★ 主要介面Wiegand、RS-232
★ 不需撰寫程式控制
★ 防潑水設計可於室內/外使用
★ 簡易的通訊協議
★ 支援E-TAG(H3晶片)



產品規格:
通訊協定：EPC C1G2, ISO 18000-6B/C
頻段：902 MHz to 928 MHz (可依使用區域調整)
天線：內建圓形極化天線 (RHCP)
輸出功率：1W (30dBm)

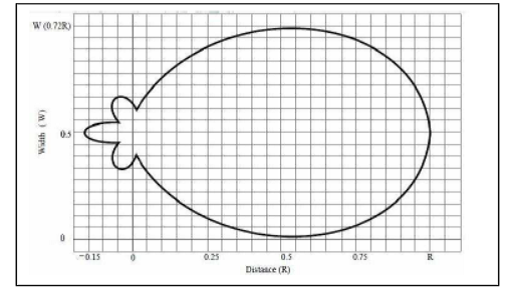

讀取距離：可達 7.6 公尺（25 英呎）；視環境與使用標籤大小與性能而定
輸出介面：Wiegand 、RS-232
輸入電源：DC 12V / 2A

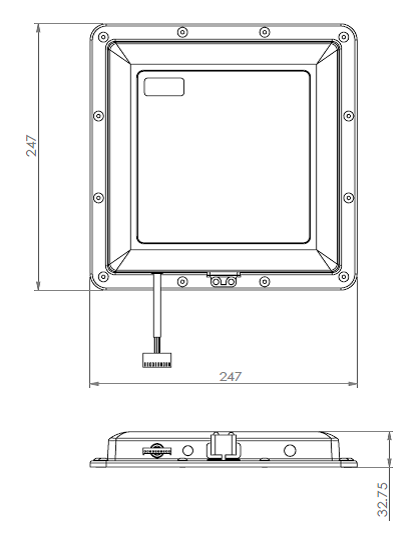

尺寸：25 x 25 x 3.3 cm
重量：約 1.25 kg
IP 等級：IP 65 等級
工作濕度：0% to 95%非冷凝
工作溫度：-35°C to +65°C (-31°F to +150°F)
LED 顯示燈：電源 ( 紅燈 ) / Data (綠燈)
產品認證：符合 FCC、 NCC 法規



TLR-4000 Reader Antenna



Product Introduction
TLR-4000 Long-Distance Reader is an Ultra High Frequency (UHF) tag and card reader used in RFID applications like gate access for vehicles and physical access for people. The TLR-4000 is optimally designed for Automatic Vehicle Identification (AVI) and Access Control applications such as gate control in a parking facility.
TLR-4000 has a built-in high sensitive antenna. And TLR-4000 HiLoMA also able to has extra antenna to provide more applications.
The series of TLR is used for access control and it supports access control system Wiegand and RS-232.



Product Characteristics
★Identify the tag rapidly, which is on a 62 mph straight driving vehicles
★Integrated reader and antenna
★Follow access control system standard Wiegand and RS-232 user interface
★No programming required for standard installation
★Water-resistant and ideal for both outdoor and indoor applications
★Simple communication protocol
★Support E-TAG (IC H3)



Product Specifications:
Communication Protocol: EPC CI G2, ISO 18000-6B/C
Frequency: 902 MHz to 928 MHz (able to adjust according to requirement)
Antenna: Integrated RHCP Patch Antenna
Output Power: 1W (30dBm)
Read Distance: Up to 25 feet (7.6 meters)
Output Interface: Wiegand, RS-232
Power Input: DC 12V / 2A
Dimensions: 9.8 x 9.8 x 1.3 " (25 x 25 x 3.3 cm)
Weight: 1.25 kg
Protection Class: IP 65 standard
Operating Humidity: 0% to 95% non-condensing
Operating Temperature:-35°C to +65°C (-31°F to +150°F)
LED Indicator Light: Power (Red) / Data (Green)
Certification: Certified with FCC and NCC regulation
